Forklift Loader,(WSM988T50)

No.	Item Name		unit	WSM988T50
1	Machine size		mm	11200
		Length(fork on ground)
2		width	mm	3640
3		height	mm	3700
4	Working device geometry parameters	Curb weight	Kg	52000
5		Max traction force	KN	320
6		Fuel capacity	L	500
7		Hydraulic tank capacity	L	500
8		Axle base	mm	4850
9		Wheel track	mm	2880
10		Min turning Radius	mm	9500
11		Gradeability (no-load/Full load)	%	30/14
12		Min.ground clearance	mm	510
13	Working device geometry parameters	Max.Lifting height	mm	3200
14		Fork standard size	mm	1600300155
15	work capacity	Load center distance	mm	1000
16		Rated Load capacity	Kg	50000
17		Max lift capacity	kg	54000（H：1.6m）
18		Rated power/roating speed	Kw/rpm	247/2200
With the improvement of the new technology, the product structure and parameters will be continuously improved ,if the sample information is not in conformity with the physical object, pls refer to the object.

Productname：	Forklift Loader,(WSM988T50)
Product Number：
Product Introduction：

wheel loader WSM988T50 Product specification

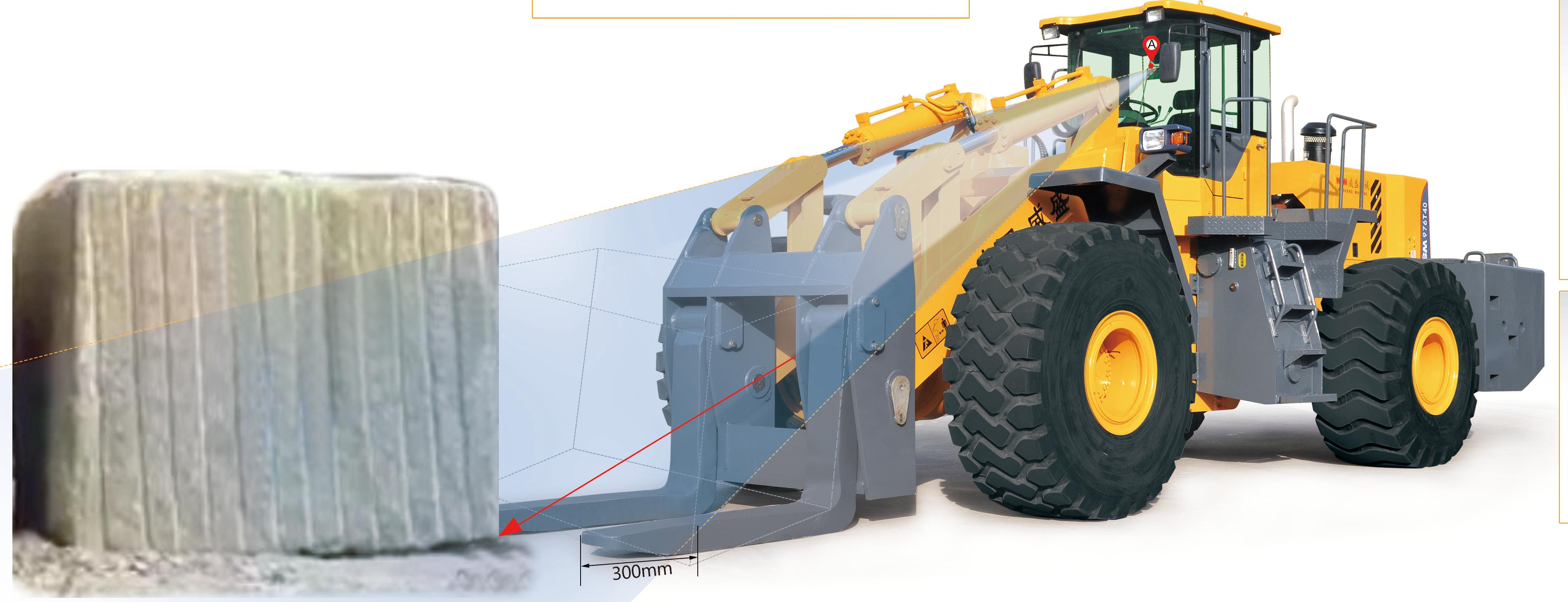

wheel loader WSM988T50 The driver A point is the height of 700mm away from the seat (normal sitting position). When the fork is horizontal, we can see the fork and fork tip fork into 300mm way.In the lifting process, the driver can see the tip and fork, it is safe to work.
